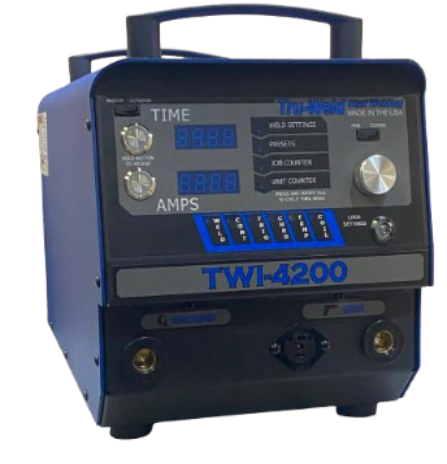

TWi-4200
3/8″ Single Gun Stud Welding System
The TWi-4200 is a fully integrated stud welding system for ferrule-shielded drawn arc stud welding processes. The TWi-4200 contains digital controls for weld time & weld current. This system was designed to be an ideal fit for shop use to weld up to 3/8″ diameter threaded studs. This is all contained in a compact, portable package.
PRO-TECH’D technology protects the gun circuitry
Improved user interface for more intuitive setup
Factory presets and user customizable presets
Optimal weld control
TWi-4200 ManualFeatures/Included
- TWi-4200 Power Supply
- TWE-MA Stud Gun
- 20 Feet of #2AWG Combo Cable
- 15 Feet of #2AWG Ground Cable w/Clamp
| Size | Weight | Weld Range | Duty Cycle | Input Voltage | Fusing Requirement |
|---|---|---|---|---|---|
|
Height 14.5” |
60 Lbs |
1/8″ to 3/8″ diameter |
|
115 VAC Single-Phase 50/60Hz |
115V/15A |
