TW Series: Capacitor Discharge Systems

TWE series capacitor discharge systems have been replaces by the TWi series

TWP-2 pin welder has been replaced by the ACE-P100

TWE-375 Manual

TWE-321 Manual

TWE-250 Manual

TWP-2 Manual

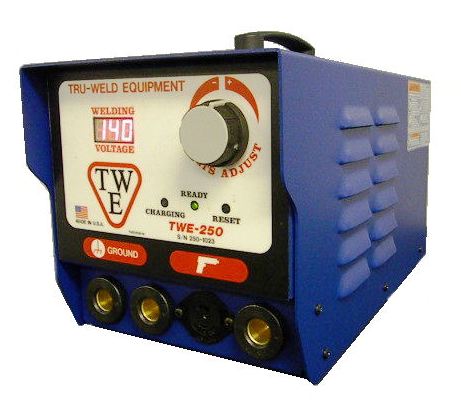

TWE-250 Capacitor Discharge Stud Welder

TW Series Specifications

Size/Dimension:
18-3/4" Length X 8" Width x 9" Height
Weight:
28-34 lbs.
Weld Range:
14 gauge through 3/8" stainless
Duty Cycle:
up to 30 studs per minute
Primary Power:
110 VAC @ 50/60Hz 10 amp circuit or 220 VAC @ 50/60Hz 5 amp circuit
Charge Voltage:
35-200 VDC
