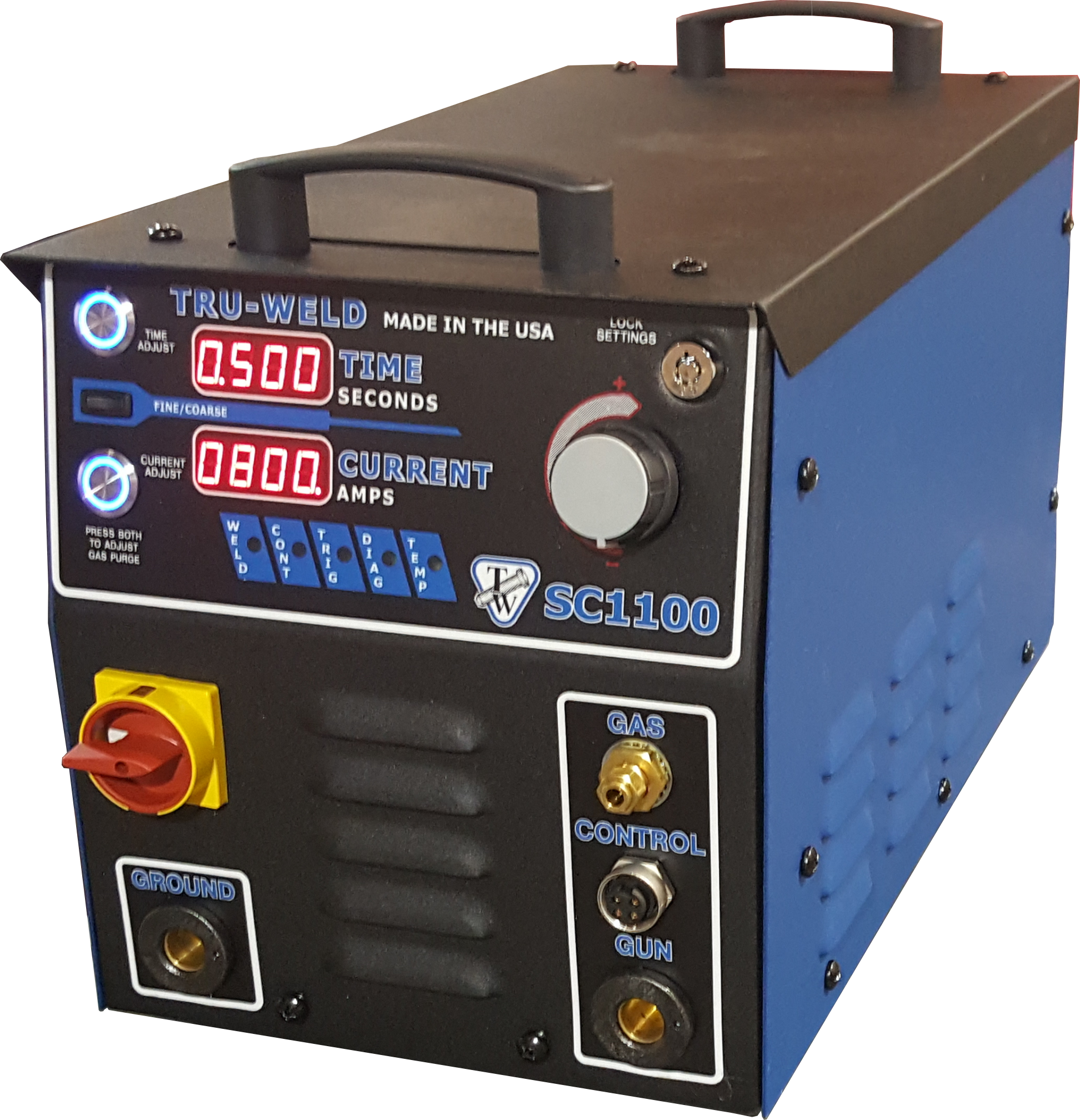

SC1100: 5/8″ Single Gun Stud Welding System

The SC1100 is a fully integrated stud welding system for ferrule-shielded and gas-shielded drawn arc stud welding processes. The SC1100 contains digital controls for weld time, weld current, and gas purge time. The system was designed to be an ideal fit for shop use, weld up to 5/8″ diameter threaded studs.  This is all contained in a compact, portable package.

SC1100 Manual

TWE 19000 Light Duty Stud Gun

SC1100 Fyler



Features/Included

  • 1100 Amp Power supply Controller, TWE19000 Light-Duty stud gun, 25 feet of #1AWG combo cable and 15 feet of #1AWG ground cable with clamp

SC1100 Specifications

Size/Dimension:
Height 12.6” (320mm)
Width 11” (280mm)
Length 22.4" (570mm)
Weight:
126 lbs (57 Kg)
Weld Range:
1/8" to 5/8" diameter
Duty Cycle:
1/8” through 1/4" - unlimited
3/8" - 7 to 8 per minute
1/2" - 4 to 5 per minute
5/8" - 2 to 3 per minute
Input Voltage:
230 / 460 VAC 3 Phase 60Hz
Fusing Requirement:
(slow acting) 230/50 Amps
460/25 Amps
